Workflow

How SampleVerify verifies every specimen

Staff capture two identifiers — a patient label and a specimen or test label. The system independently retrieves authoritative data for each from the hospital's electronic health record, cross-references them, and returns a clear result.

1. 1

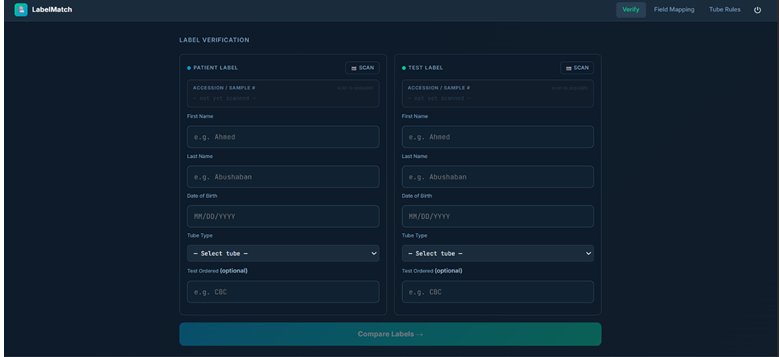

   Verification session initiation

   Once logged in, the staff member opens the Verify screen, which presents two distinct input areas: one for a Patient Label and one for a Test Label. No comparison can proceed until both are captured.


2. 2

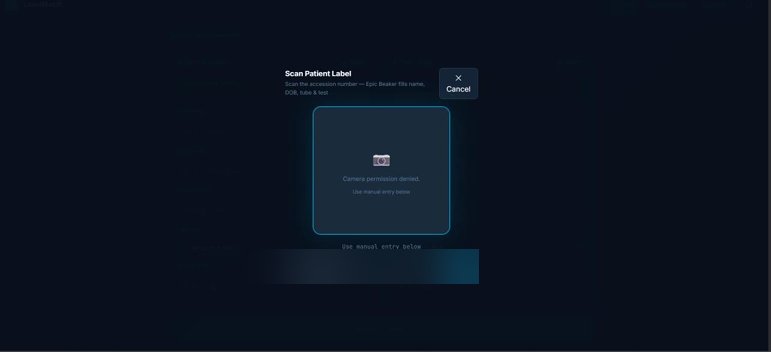

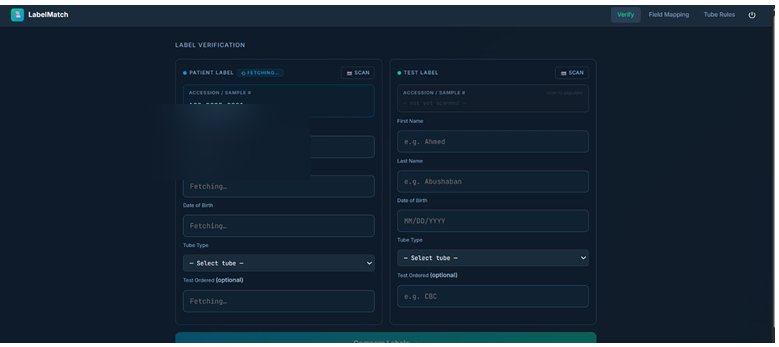

   Patient label capture

   The staff member captures the patient identifier either by scanning a barcode on the patient's label using the device camera, or by manually entering or pasting the identifier. The system dynamically detects which barcode formats the device supports, rather than being limited to a single fixed symbology.


3. 3

   Automated retrieval from the EHR

   Once both identifiers are captured, the application performs a server-side lookup against the hospital's electronic health record system to retrieve patient demographic data, specimen data, and the associated ordered test for each identifier. Retrieval runs entirely on a backend service — the client device never communicates directly with the hospital's system. The backend authenticates with a signed digital credential through OAuth 2.0 Backend Services rather than a shared password, and the connection endpoint is configurable per hospital.


4. 4

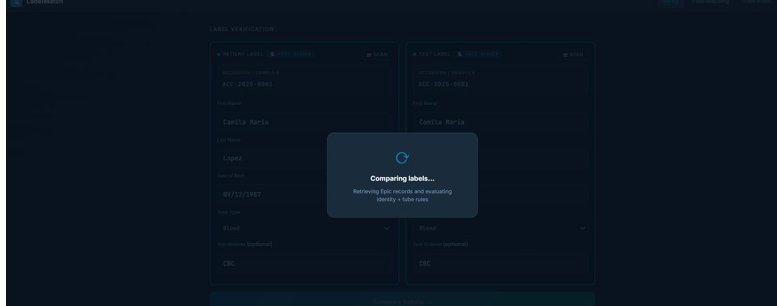

   Automated comparison engine

   The retrieved data passes through a comparison engine that checks two independent conditions: whether the patient identity fields (such as name and date of birth) on each label match one another, and whether the specimen container type is compatible with the ordered test according to a configurable rule set. Both checks are evaluated before any result is returned.


5. 5

   Result classification and display

   The system returns one of four distinct outcome states rather than a single pass or fail, each shown immediately with a distinct visual indicator.



   Verified

   Both identity and container checks passed.

   Mismatch

   A patient identity discrepancy was found.

   Warning

   Identity matches, but the container or test is incompatible.

   Unable to Verify

   Not enough data could be retrieved to complete the check.

Configurable rule engine

Two administrator screens let the matching logic adapt to each hospital without code changes.

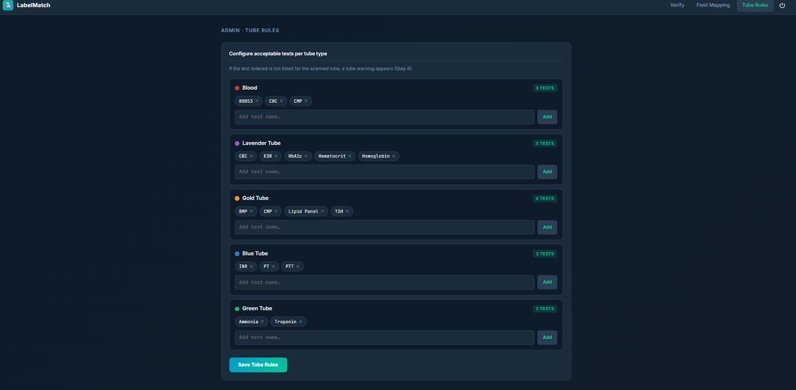

Tube rules

Admins define which container or tube types are valid for each test type. The comparison engine uses this rule set, which can reflect a hospital's own container standards.

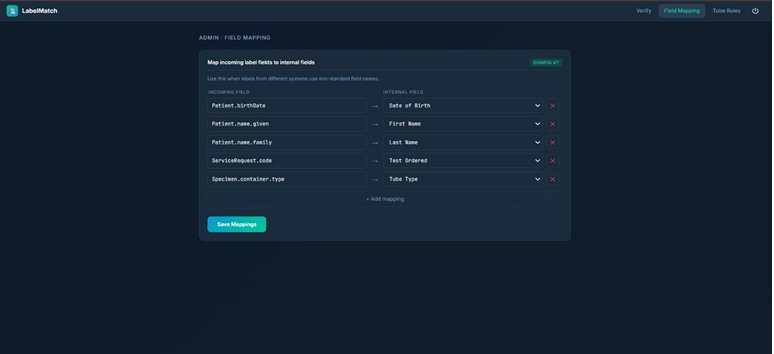

Field mapping

Admins define how incoming EHR data fields correspond to the fields used by the comparison engine, so the same logic adapts to different hospital data structures.
